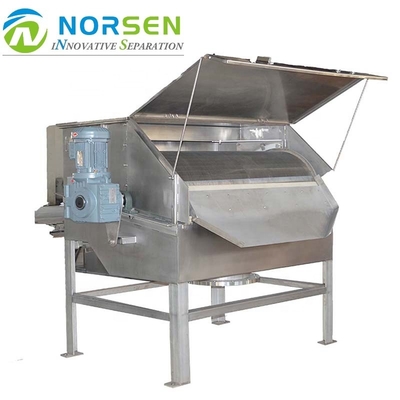

Hotels NORSEN Rotary Drum Filter Screen For Fish Farming System

1 Set
MOQ
$4,000.00(>=1 Sets)
τιμή
Hotels NORSEN Rotary Drum Filter Screen For Fish Farming System
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 2 years
Core Components: 1
Material: wood, SS316/SS304
Weight: more than 100 kg
Size: more than 0.5*0.5*1 m
Power: 1.5 KW
Warranty: 1 Year
Productivity: 500L/Hour
Product name: RO1 rotary drum screen cleaner
Certifation: CE ISO9001
Width: 600 mm
Channel Width: 620 mm
Installation Angle: 35 Degreen
Discharge Height: 1000-1500 mm
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: Export standard package or customer reqiurment
Supply Ability: 15 Set/Sets per Month
Περιγραφή προϊόντων
RDS-type rotary drum sceen is a device that can continuously and effectively screen out solid suspended solids in water. Mainly used in sewage pretreatment or industrial sieving process. In some sewage treatments, the sieved sewage can remove 30% to 60% of organic or inorganic suspended solids, greatly reducing the processing load of subsequent processes. The equipment is widely used in the filtration of fine solids in food, wine, pharmaceutical, dairy products and other industries.
This machine is composed of drum, driving mechanism, unloading mechanism, recoil pipeline, sealing assembly, inspection door assembly, tank body, slag hopper, etc.

Working process: Sewage (or other raw water) flows into the drum from the front of the drum surface through the drum surface, and flows out from the lower part.

The suspended matter in the sewage stays on the rotating drum surface. With the rotation of the drum surface, the trapped dirt is sent from the water inlet end to the discharge end on the other side, and it is scooped down by the discharge mechanism.
1) The equipment price is low, but it can greatly reduce the treatment load of the wastewater system;
2) Stable and reliable work, low maintenance cost;
3) The wedge-shaped drum surface is especially suitable for the passage of fluid, and it is not easy to block;
4) The whole machine is made of high-quality stainless steel, which will never corrode;
5) It can automatically and continuously run and automatically discharge slag;
6) Drum-shaped design, large filtration area, so when the same processing
capacity, compact structure, small footprint and low energy consumption;
7) Fully enclosed design to prevent possible secondary pollution.
NORSEN
NORSEN, is a worldwide leading company in wastewater & solid-liquid separation of industrial & municipal wastewater. Our head office and factories are located in the city of Wuxi, Jiangsu province, while we’ve got branches all over the country as well as agents and distributors all over the world. Our featured products are Wastewater Treatment & Sludge Dewatering Machine, which can be widely used in varieties of industries, such as papermaking, printing & dyeing, food & beverage, oil & gas, coal mining, pharmacy, livestock, light industries and so on. NORSEN are constantly focusing on the innovating.
